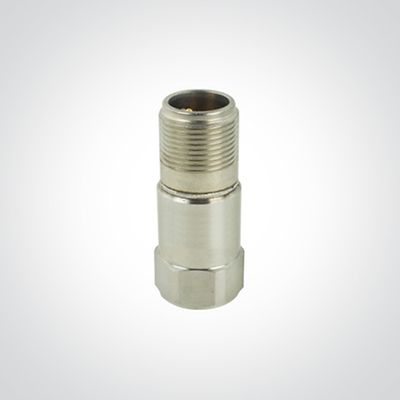

AMS-P-A0220HF

A0220HF 고주파 가속도계

선정 제품 설명

고주파 출력을 생성하는 특수 응용 분야를 측정하기 위한 넓은 주파수 대역(최대 15kHz).

민감도(±5%)
100mV/g(10.2mV/m/s²)
측정 범위
±50g(±490m/s²)
주파수 범위(±3dB)
0.80 ~ 15,000Hz(48 ~ 900,000cpm)
횡감도
5
여자 전압/전류
18 ~ 28VDC/2 ~ 20mA
무게
51g(1.8oz)
작동 온도
-54 ~ 121°C(-65 ~ 250°F)
충격 한계
5,000gpk(49,050m/s²)

특징

  • Range of accelerometers covers all standard applications
  • Triaxial accelerometer reduces time spent collecting data
  • Swivel-based, low-profile accelerometers eliminate cable strain
  • Many items developed in partnership with industry-leading manufacturers

문서 및 도면
