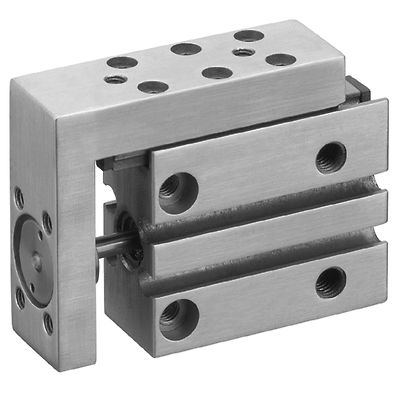

AVENTICS™ Mini slide, Series MSN R452000843

Piston Ø

6 mm

Stroke

20 mm

Functional principle

Double-acting

Port

M5

Cushioning

elastic

Min. working pressure

2.5 bar

Max. working pressure

10 bar

Min. ambient temperature

0 °C

Max. ambient temperature

60 °C

Medium

Compressed air

Retracting piston force, theoretical

13 N

Extracting piston force, theoretical

18 N

Max. speed

0.5 m/s

Cushioning energy

0.01 J

Min. oil content of compressed air

0 mg/m³

Max. oil content of compressed air

1 mg/m³

Max. particle size

5 µm

Pressure for determining piston forces

6,3 bar

with integrated ball rail guide

with integrated ball rail guide

Weight

0.089 kg

Housing material

Aluminum

Material piston rod

Stainless Steel

Seal material

Polyurethane

Material ball rail table

Aluminum

Material guide rail

Steel, chrome-plated
