  • KTM Series EB1 OM-2 Split Body Floating Ball Valve with Powered Actuator
KTM-K-series eb om2 floating ball valve powered actuator

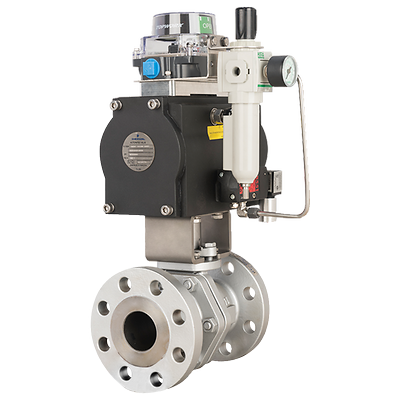

KTM Series EB1 OM-2 Split Body Floating Ball Valve with Powered Actuator

선정 제품 설명

The KTM Series EB1 OM-2 is a high performance, next generation ball valve complete with powered actuator, configurable by power source, size, function and more.

영업부에 문의
자세히 알아보기
작업 공간에 추가

특징

KTM Series EB1 OM-2 Split Body Floating Ball Valve
  • Superior valve design at a competitive price - The valve provides bidirectional shut-off for soft seat valves and diverse seat types, suitable for various applications.
  • The valve has been independently tested and proven to minimize emissions, contributing to a cleaner environment and compliance with regulations.
  • The valve has undergone fire testing and meets the requirements of two international standards, ensuring its safety and reliability in extreme conditions, such as those encountered in the oil and gas industry.
  • Bidirectional shut-off.
  • Valve fugitive emissions capability third party certified to ISO 15848-1.
  • Machined ISO actuator mounting pad.
  • Pure white E-seat (PTFE/PFA copolymer) seal relieves concern over product contamination.
  • Positive alignment of split body.
  • Fire test certified to API 607 5th edition and ISO 10497.
  • PTFE bearing and packing rings reduce wear.
  • Lower operating torque for ease of operation and reduced actuator cost.
  • Positive position indication.
Keystone F89 공압 1/4 회전 액추에이터
  • 모든 Keystone 버터플라이 밸브 및 볼 밸브에 대하 다이렉트 마운트 가능합니다.
  • 밸브 연결은 Keystone(야드-파운드법 및 미터법) 및 ISO 5211과 호환 가능합니다.
  • 이중 랙 및 피니언 설계로 피니언 샤프트의 측면 부하를 무효화하여 베어링 마모를 최소화하고 수명을 연장합니다.
  • 열림 및 닫힘 위치(양끝 +/- 5�)에서 밸브 위치 조절에 적합하도록 표준 마운트 트래블 스톱으로 제품 유량 최적화.
  • 정전기 방지 코팅(ESPC) 마감 처리된 양극산화 알루미늄 바디를 갖추어 부식성 환경에 대해 내구성 있는 보호를 제공할 수 있습니다.
  • 비용 효과적이고 안전한 작동을 위해 이중 작동 및 스프링 리턴 버전 사용 가능
  • 최대 12개의 개별 스프링이 볼 및 버터플라이 밸브에 대해 유연한 토크 범위를 제공합니다.
  • 사전 압축 스프링 설계 및 분발 방지 드라이브 피스톤은 안전한 유지 보수 및 작동을 보장합니다.
Emerson Powered Actuator
  • Direct mounting to all Keystone butterfly valves and ball valves.
  • Valve connection compatible with Keystone (imperial and metric) and ISO 5211.
  • Double Rack and Pinion design nullifies side loads on the pinion shaft, minimizing bearing wear and extending life.
  • Optimized product flow with standard mounted travel stops for valve position adjustment in open and close position (+/- 5° at each end).
  • Anodized aluminium body with electrostatic powder coating (ESPC) finish provides durable protection against corrosive environments.
  • Double acting and spring return versions available for cost effective and safe operation.
  • Up to 12 individual springs offer flexible torque range for both ball as butterfly valves.
  • Pre-compressed spring design and anti-blowout drive pinion means safe maintenance and operation.

사양

KTM Series EB1 OM-2 Split Body Floating Ball Valve
Size Range
NPS ½ - 10 (DN 15 - 250)
Temperature Rating
-320°F to 932°F (-196°C to 500°C)
Pressure Rating
ASME Class 150, 300, 600, 900,1500
Body Design
Long Pattern, Side Entry
Material
304 Stainless Steel, 316 Stainless Steel, Alloy, Carbon Steel, Hastelloy, Inconel, Low Temp Carbon Steel, Stainless, Stainless Steel
Operating Temperature
-330 to 842°F (-200 to 450°C)
Pressure Class
ASME
Process Connection Type
150FF, 300RF, CL150RF, CL300RF, Flanged
Seat/Seal Type
Ball, Metal-to-Metal, Soft Seal
Shutoff Class
API 598, Class V (FCI 70-2), Class VI (FCI 70-2), Rate D (ISO 5208), Zero Leakage
Standards
API 608, ASME B16.34
Valve Size
NPS 1/2 / DN 15, NPS 10 / DN 250, NPS 1-1/2 / DN 40, NPS 2 / DN 50, NPS 2-1/2 / DN 65, NPS 3 / DN 80, NPS 3/4 / DN 20, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200
Valve Size Standard
DN, NPS
Valve Type
Automated Ball Valve, Ball, Ball Valve, Floating Ball Valve
Keystone F89 공압 1/4 회전 액추에이터
공급 압력
최대 8.3bar
온도
`-40°C ~ 150°C
유형
쿼터-턴(Quarter-turn)

문서 및 도면

KTM Series EB1 OM-2 Split Body Floating Ball Valve
Keystone F89 공압 1/4 회전 액추에이터
Emerson Powered Actuator
